IOANNINA

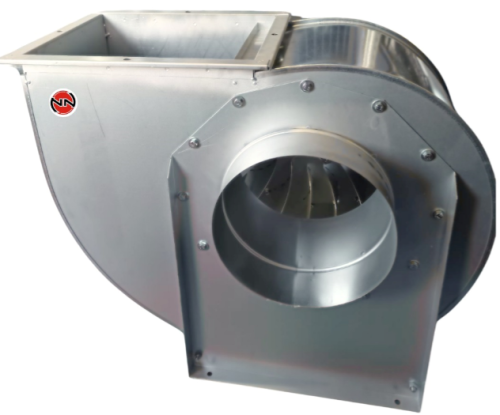

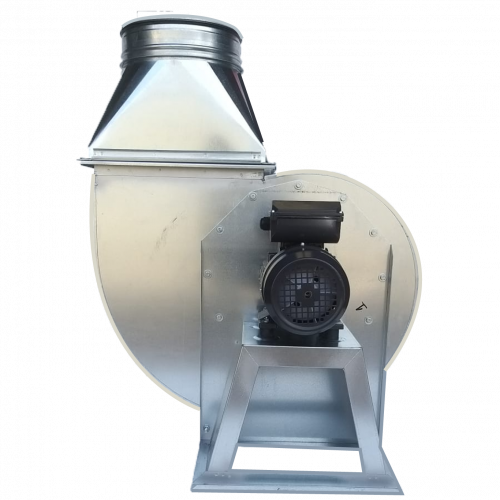

CF 2 HP 300 T4 IE3 — single inlet medium pressure centrifugal fan for external motor professional kitchen hoods, intensive cooking and industrial kitchens with high temperatures.

Maximum airflow 8,000 m³/h, inlet diameter Ø300 mm, static pressure up to 500 Pa.

Three-phase IE3 premium Simotop motor, power 1.5 kW, voltage 230/380V / 50Hz, speed 1,450 rpm, protection IP55, insulation Class F.

Maximum conveyed air temperature: +150°C — designed specifically for hot air extraction from kitchen hoods. Spoon-type impeller with sparse blades — easy cleaning, no oil deposits on blades.

Mounted on support with vibration isolating dampers. 6 mounting positions available (R0°, R90°, R270°, L0°, L90°, L270°).

Also available in stainless steel casing or mounted in soundproofed BOX HP plenum enclosure.

Perforated metal mounting tape for securing ventilation ductwork, cables, pipes and installation components. Material: galvanised steel with corrugated structure and uniformly spaced perforations. Sizes: 17×0.7 mm, supplied on a 10-metre roll — cut to any length directly on site, no special tools required.

Fast installation: fix with screws, rivets or cable ties. Compatible with circular and rectangular ventilation duct, sanitary pipework, electrical cables and lightweight steel structures.

Soundproof box for double inlet centrifugal fans

Size 10/10

Soundproof box for double inlet centrifugal fans

Size 12/12

Soundproof box for double inlet centrifugal fans

Size 7/7

Soundproof box for double inlet centrifugal fans

Size 9/9
